System Bifacial Solar Panels



Ua kom muaj zog. Raws li bifacial modules tuaj yeem tsim lub zog los ntawm ob sab ntawm lub vaj huam sib luag, muaj tag nrho cov khoom tsim hluav taws xob. Qee cov tuam txhab lag luam hais tias cov hnub ci bifacial tuaj yeem tsim tau txog li 30 feem pua ​​​​ntawm lub zog ntau dua li cov pa hluav taws xob monofacial hnub ci.







Lub hnub ci bifacial solar cell (BSC) yog lub hnub ci photovoltaic uas tuaj yeem tsim hluav taws xob hluav taws xob thaum pom ntawm ob qho tib si ntawm nws qhov chaw, pem hauv ntej lossis nram qab. Hloov chaw, monofacial solar cells tsuas yog tsim hluav taws xob thaum photons cuam tshuam rau lawv sab pem hauv ntej.



Khoom taw qhia



Cell	Mono 156.75mm HJT bifacial
Tsis muaj cell	60（6×10）
Rated Maximum Fais Fab (Pmax)	320W
Junction Box	IP68
Maximum System Voltage	1000V / 1500V DC (IEC)
Ua haujlwm kub	-40 degree - ntxiv rau 85 degree
Qhov ntev	1658mm × 992mm × 5mm
Qhov hnyav	20kg ± 3 feem pua



Khoom piav qhia



Lub Heterojunction Technology (HJT) ua ke nrog kev ua haujlwm siab nrog kev tsim qauv yooj yim txo tus naj npawb ntawm cov txheej txheem tsim khoom thiab ua tiav cov nqi tseem ceeb. Nws muab cov txiaj ntsig zoo ntawm mono crystalline silicon hnub ci hlwb nrog kev nqus zoo thiab cov yam ntxwv zoo tshaj plaws ntawm amorphous silicon ua rau muaj kev ua tau zoo dua.

Piv nrog rau lwm cov khoom siv hluav taws xob ultra-siab, HJT hnub ci cell yog tsim nyob rau hauv cov txheej txheem tsawg.

Lub compact thiab lub teeb yuag dual-iav module nrog 2. Vim yog cov khoom siv thiab cov qauv tsim, dual-iav module hauv paus tsis txhob muaj qhov tsis xws luag xws li PID, micro tawg ntawm cov hlwb, thiab cov qwj txoj kev, uas tuaj yeem txo cov nqi peev, thauj tus nqi thiab kev pheej hmoo ntawm kev siv fais fab nroj tsuag, thiab lwm yam. Ntawm qhov chaw photovoltaic yog solar panels.







1 TSEEM CEEB





2 MECHANICAL DIAGRAMS





3 ELECTRICAL PARAMETERS ntawm STC

Rated Maximum Fais Fab (Pmax) [W]	305	310	315	320
Qhib Circuit Court Voltage (Voc) [V]	39.85	40.15	40.46	40.86
Lub zog hluav taws xob siab tshaj plaws (Vmp) [V]	33.23	33.59	33.92	34.25
Luv Circuit Court tam sim no (Isc) [A]	9.73	9.77	9.84	9.89
Maximum fais fab tam sim no (Imp) [A]	9.18	9.23	9.29	9.35
Module Efficiency [%)	18.5	18.8	19.2	19.5
Hwj chim Tolerance	0 ~ ntxiv rau 5W
Kub Coefficient ntawm Isc ( _Isc)	0.048 feem pua ​​/ degree
Temperature Coefficient of Voc( _Voc)	-0.271 feem pua ​​/ degree
Kub Coefficient ntawm Pmax ( _Pmp)	-0.336 feem pua ​​/ degree
STC	Irradiance 1000W / m², cell kub 25 degree, AM1.5G

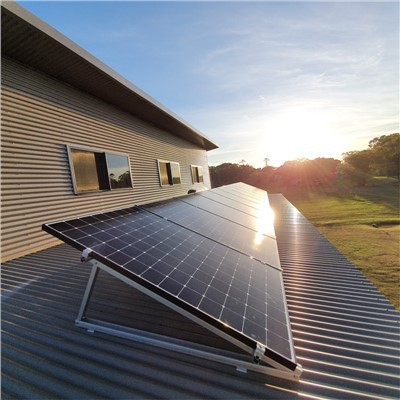

Lub tshuab hluav taws xob photovoltaic tuaj yeem ntsia tau rau saum npoo ntawm lub ntiaj teb hauv qhov loj me los ua qhov chaw nres tsheb photovoltaic. Nws tseem tuaj yeem muab tso rau ntawm lub ru tsev lossis phab ntsa sab nrauv ntawm lub tsev los tsim kev koom ua ke ntawm photovoltaic architecture.
